K- 07 30 25 25
Angle-seat valves with piston actuator
Описание продукта

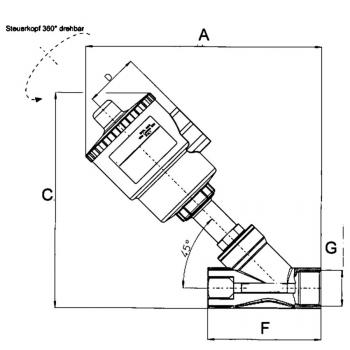

| C | 163 mm |
| A | 173 mm |
| F | 75 mm |
| Резьба | G 3/4 |
Свойства
| Уплотнение | PTFE |
| Температура среды | -10 °C to +180 °C |
| Шпиндель | Stainless steel |
| Температура окружающей среды | -20 °C to +70 °C |
| Корпус клапана | Bronze |
| Поршни | Nickel-plated brass (DN 15 to DN 32), PBT + GF 30% (DN 40 to DN 50) |
| Перепад давления | 0 - 16 bar |
| допустимое статическое давление | 16 bar |
| Соединительный элемент | Stainless steel |
| Распределительная головка | Polyamide (glass fibre-reinforced) |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.G thread acc. to DIN EN ISO 228-1, with ISO flange plate (acc. to ISO 5211)For use on devices that have to be vented whenever they are turned off, either because of safety regulations or for technical reasons. The pneumatic devices are disconnected from the system and simultaneously vented each time they are shut off.
Angle-seat valves with external pilot control and a self-aligning valve discfor neutral (bronze body) or corrosive (stainless steel body) media. Very high flow due to angled seat design, Water hammer prevented by fluid entry under the disc, Suitable for vacuum operation (low vacuum), NAMUR interface on the piston actuator. 3/2 and 5/2-way valves can be mounted directly.
Information on max. operating differential pressures apply for air, gas, corrosive aggressive media, waterControl air port G 1/8Pilot fluid temperature max. +60 °COther versions e.g. for steam on request
