K- 07 30 22 29
Normally closed, 230 V / 50 to 60 Hz, internal pilot control
Описание продукта

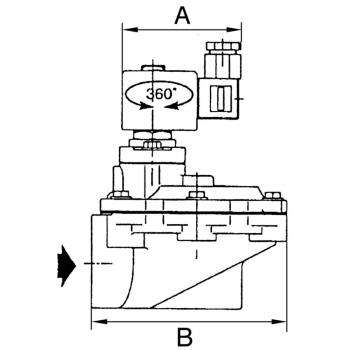

| B | 89 mm |
| A | 75 mm |

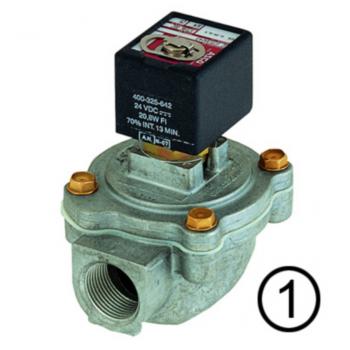

| Конструкция | 1 |
| Резьба | G 3/4 |
Свойства
| Рабочее давление | min. 0,35 bar; max. 8,5 bar |
| Уплотнение | Perbunan (NBR) |
| Температура среды | Max. +90 °C |
| Корпус | Aluminium |
| Внутренние детали | Stainless steel |
| Подключение к электросети | ISO 4400 (Pg 11P connector socket) |
| Степень защиты | IP65 (with connector socket fitted) |
| Мембрана | Type 1 TPE (Hydrel); Type 2 CR (chlorophene/neoprene) |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.
Environmental protection today demands state-of-the-art cleaning processes. Dust filter systems are an indispensable aid to pollution control. The fabric filters installed in these systems are cleaned by blowing in compressed air pulses in quick succession counter to the main direction of flow. The solenoid valves used for this purpose are characterised by the following application-specific design features:- Angle type of construction to optimise the air flow- Full cross-section at the valve seat- Extremely fast opening and closing- Quiet operation thanks to built-in silencers (can be retrofitted in sizes 1 1/2 to 2 1/2)- Easy maintenance and repair because diaphragm and wearing parts are instantly availableThe valves are not suitable as shut-off devices for standard applications.
Relief port (type 2): G 3/8 (K-07302231 und K-07302304), G 3/4 (K-07302232 und K-07302305, K-07302233 und K-07302306), Silencers can be retrofitte
