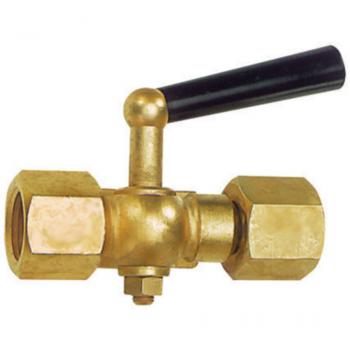

K-MANO ABSPH MUF DREH MUF
Pressure gauge stopcocks, female - loose (rotatable) female
Применение:
For all pressure gauges with a flat gasket acc. to DIN 16258
Температура:
max. 50 °C
Корпус:
Brass with a bare metal surface or stainless steel 1.4571
Диапазон давлений:
Max. 16 bar, depending on the variant. Pressure gauge valves should be used for higher pressures
Свойства
| Применение | For all pressure gauges with a flat gasket acc. to DIN 16258 |
| Температура | max. 50 °C |
| Корпус | Brass with a bare metal surface or stainless steel 1.4571 |
| Диапазон давлений | Max. 16 bar, depending on the variant. Pressure gauge valves should be used for higher pressures |
| Ручка | Plastic |
| Контрольный фланец | - |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.K-07201090, K-07201091 in acc. with DIN 16261-A, K-07201096, K-07201097 in acc. with DIN 16261-B K-07201128, K-07201129 in acc. with DIN 16262-A, K-07201127 in acc. with DIN 16262-B
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe. When the lever is set to the »blow out« position, the medium is discharged into the atmosphere. Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Further measuring ranges on requestVersion for panel mounting available on request. Version with max. pointer available on request
Варианты изделия
| Наименование | SW | PN бар | Материал | Резьба | Подробности |
| K- 07 20 10 86 | 27 mm | 25 | Латунь | G 1/2 | Подробнее |
| K- 07 20 10 87 | 27 mm | 25 | Латунь | G 1/2 | Подробнее |
