K- 07 20 10 95

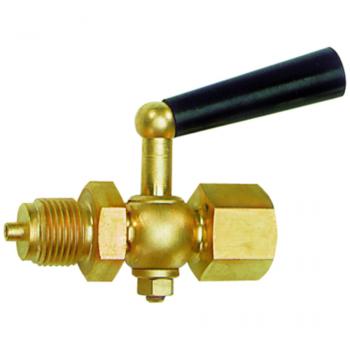

Pressure gauge stopcocks, female - male
Описание продукта
| SW | 22 mm |
| PN бар | 16 |
| Материал | Латунь |
| Резьба | G 3/8 |
Свойства
| Применение | For all pressure gauges with a flat gasket acc. to DIN 16258 |
| Температура | max. 50 °C |
| Корпус | Brass with a bare metal surface or stainless steel 1.4571 |
| Диапазон давлений | Max. 16 bar, depending on the variant. Pressure gauge valves should be used for higher pressures |
| Ручка | Plastic |
| Контрольный фланец | - |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.K-07201090, K-07201091 in acc. with DIN 16261-A, K-07201096, K-07201097 in acc. with DIN 16261-B K-07201128, K-07201129 in acc. with DIN 16262-A, K-07201127 in acc. with DIN 16262-B
It is useful to install a stopcock as a shut-off element between the pressure gauge and the pipe. When the lever is set to the »blow out« position, the medium is discharged into the atmosphere. Stopcocks with a test port allow pressure gauges to be simultaneously connected to the pipe.
Further measuring ranges on requestVersion for panel mounting available on request. Version with max. pointer available on request
