K-SCHLAUCHBRUCHSICHERUNG

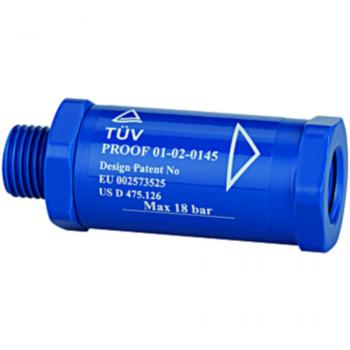

Hose rupture valves Typ Hose Guard
Область температур:
-20 °C to +80 °C (G 1/4 to G 1/2)
-20 °C to +120 °C (G 3/4 to G 2)
Кольцо круглого сечения:
Нитрильный каучук
Корпус:
Aluminium
Поршни:
Polyacetate (G 1/4 to G 1/2); Aluminium (G 3/4 to G 2)
Свойства
| Область температур | -20 °C to +80 °C (G 1/4 to G 1/2) -20 °C to +120 °C (G 3/4 to G 2) |
| Кольцо круглого сечения | Нитрильный каучук |
| Корпус | Aluminium |
| Поршни | Polyacetate (G 1/4 to G 1/2); Aluminium (G 3/4 to G 2) |
| макс входное давление | 18 bar (G 1/4 to G 3/4); 35 bar (G 1 to G 2) |
- Указания
- Описание
- Дополнительная информация
- Указание по заказу
Прочие данные только по запросу.
Efficient protection for ruptured hoses or pipes in pneumatic systems. Preset to permit normal air consumption by pneumatic tools. Hose Guard detects a rupture in a hose or pipe and interrupts the supply of compressed air in a fraction of a second apart from a minimal residual flow. Unaffected parts of the compressed air system remain fully pressurised, so that the damaged hose or segment can be replaced without difficulty. Once the ruptured hose or pipe has been repaired, the replaced segment gradually fills to its working pressure level. As soon as this occurs, Hose Guard opens the line again for normal operation. Hose Guard protects personnel, machinery and plant against damage if a pneumatic system or hose ruptures, complies with the EU standard DIN EN ISO 4414: 2010, 2011-04 - § 5.4.5.11, is reliable and tamper-proof, can be installed in any pneumatic system, bears the T?V test mark 01-02-0145.
Installation upstream of a coupling (connector between hard piping and junction box/coupling) and downstream of a service unit
ATTENTION: For suitable hoses, please check the respective data sheet.
Варианты изделия
| Наименование | Длина | SW | Резьба | Подробности |
| K- 07 30 24 84 | 57 mm | 22 mm | G 1/4 male/female | Подробнее |
| K- 07 30 24 86 | 76 mm | 27 mm | G 3/8 male/female | Подробнее |
| K- 07 30 24 83 | 80 mm | 30 mm | G 1/2 male/female | Подробнее |
| K- 07 30 24 88 | 48 mm | 22 mm | G 1/4 female/female | Подробнее |
| K- 07 30 24 90 | 59 mm | 27 mm | G 3/8 female / female | Подробнее |
| K- 07 30 24 87 | 65 mm | 30 mm | G 1/2 female/female | Подробнее |
| K- 07 30 24 89 | 76 mm | 36 mm | G 3/4 female/female | Подробнее |
| K- 07 30 24 82 | 100 mm | 50 mm | G 1 female/female | Подробнее |
| K- 07 30 24 85 | 130 mm | 80 mm | G 2 female/female | Подробнее |
