K- 07 25 09 97

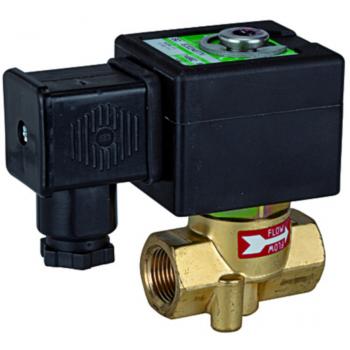

Proportional valves for controlling the flow of water / oil, 24 VDC, closed when de-energised
Описание продукта

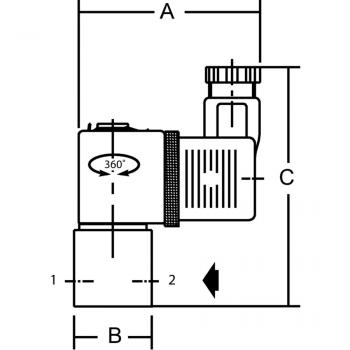

| DN | 6 |
| C | 97 mm |
| B | 48,0 mm |
| A | 85 mm |
Свойства
| Рабочие среды | Air, neutral gases, water, oil |
| Область температур | Max. 50 °C (G 1/8), Max. 90 °C (G 1/4, G 3/8) |
| Уплотнение | FKM |
| Внутренние детали | Stainless steel |
| Диапазон давлений | Vacuum (max. 8 bar) |
| Корпус седло клапана | Brass |
| Настройка | Via plug amplifier 0 to 10 V, 0 to 20 mA, 4 to 20 mA |
| Свойства Failsafe | Tight closure in case of loss of voltage |
| Клапанная тарелка | FKM |
- Указания
- Описание
- Дополнительная информация
- Zubehr gehrt zu
Прочие данные только по запросу.
Ever increasing requirements with regard to quality, precision, productivity, convenience, user friendliness and service represent tough challenges for industrial plant and production facilities. These challenges can only be mastered if physical quantities such as temperature, pressure, force, speed, torque, etc. are optimally adapted to the operating conditions of each installation. Stepless adjustment of these parameters is vital.
Proportional valves allow the medium to be varied as a function of an electronic input variable.
By linking these valves to the electronics, it is possible to improve their accuracy and broaden their range of applications. A pressure regulator, for instance, needs to be suitable for several pressure ranges without having to adjust the pressure manually.
Proportional valves control the output pressure in a closed control loop proportionally to the selected setpoint signal. This output pressure, in other words, is continually compared with the specified setpoint and automatically adjusted according to actual parameter values.
Proportional valves allow the medium to be varied as a function of an electronic input variable.
By linking these valves to the electronics, it is possible to improve their accuracy and broaden their range of applications. A pressure regulator, for instance, needs to be suitable for several pressure ranges without having to adjust the pressure manually.
Proportional valves control the output pressure in a closed control loop proportionally to the selected setpoint signal. This output pressure, in other words, is continually compared with the specified setpoint and automatically adjusted according to actual parameter values.
We recommend combining these proportional valves with a plug amplifier, type K-07250999 or K-07251000We recommend combining these proportional valves with a plug amplifier, type K-07250999 or K-07251000
DN = номинальный диаметр, номинальный внутренний диаметр
