K- 07 25 09 74

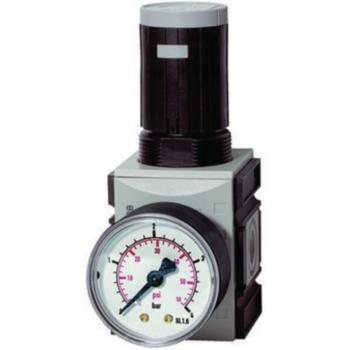

Precision pressure regulators with continuous pressure supply
Описание продукта

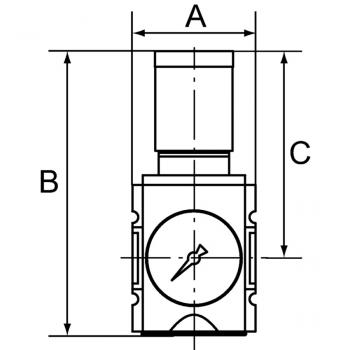

| C | 95.5 mm |
| B | 128,5 mm |
| A | 52 mm |
| Резьба | G 3/8 |
Свойства
| Рабочие среды | Сжатый воздух |
| Область температур | -10 °C to +50 °C |
| Корпус | Material: Grivory® (PA 66) |
| Соединительная резьба | Material: Die-cast zinc |
| Измерение расхода воздуха | At P1 = 10 bar, P2 = 6.3 bar and pressure drop ?p = 1 bar |
| Входное давление | Max. 16 bar |
| Мембрана | NBR |
| Расход собственного воздуха | 2.6 l/min at P2 = 6 bar (depending on secondary pressure) |
- Указания
- Описание
- Указание по заказу
Прочие данные только по запросу.
Precision diaphragm pressure regulators with self-relieving design and excellent flow rates in modern design for mounting side by side.
By assembling two or more controllers together, it is possible to supply several working air circuits with different pressures via a single supply line.
By assembling two or more controllers together, it is possible to supply several working air circuits with different pressures via a single supply line.
The price does not include a key lock. Please order separately.
