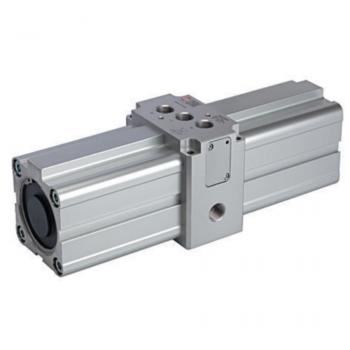

K-DVST OHNE REGLER
Pressure booster without regulator
Рабочие среды:
Filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Область температур:
-10 °C to +50 °C (40 mm bore), -10 °C to +60 °C (63 mm bore)
Уплотнение:
Нитрильный каучук
Корпус:
Aluminium, anodised
Свойства
| Рабочие среды | Filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous. |
| Область температур | -10 °C to +50 °C (40 mm bore), -10 °C to +60 °C (63 mm bore) |
| Уплотнение | Нитрильный каучук |
| Корпус | Aluminium, anodised |
| Монтаж | Any position, with 4 mounting holes |
| Входное давление | 2 - 10 bar |
| Выходное давление | Max. 20 bar (regulated: max. 16 bar) |
| Труба | Anodised aluminium jacket |
| P2P1 | 2:1 |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.For information about calculating the filling times for different tank sizes, refer to the above-mentioned data sheet available on our website

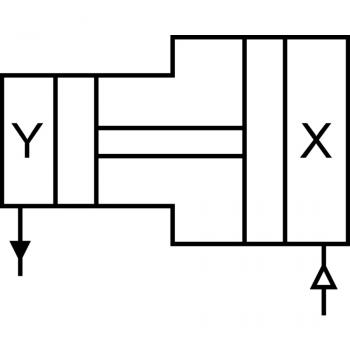

Pressure multipliers (boosters) allow a separate compressed air store with up to double pressure to be installed for selected devices in a compressed air system without an external energy source, i.e. it is possible to work with a maximum pressure of 20 bar in a standard 10 bar system (maximum ratio 2:1). This is achieved using a double piston, which is operated by a combination of integrated check valves in such a way that the booster works automatically until the target pressure is reached in a compressed air tank and is then automatically switched off. A tank is always required to build up the pressure and store the compressed air!
Fixing bracket with nutPressure regulators with plastic body
Варианты изделия
| Наименование | H | L | Подробности |
| K- 07 25 08 64 | 64 mm | 194 mm | Подробнее |
| K- 07 25 08 66 | 98 mm | 290 mm | Подробнее |
* Несмотря на тщательную проверку мы не можем исключить наличие ошибок и не несем ответственность за содержащуюся в них информацию.
