K- 07 25 02 82

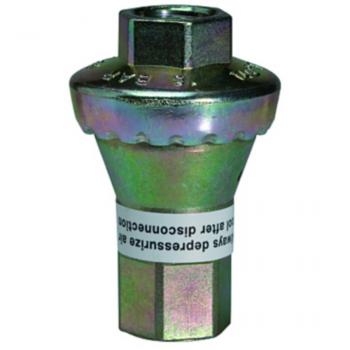

Inline pressure regulators, non-self-relieving
Описание продукта
| SW | 17 mm |
| B | 52,0 mm |
| A | 34 mm |
| Резьба | G 1/4 |
Свойства
| Рабочее давление | max. 18 bar |
| Область температур | 0 °C to +60 °C |
| Корпус | Zinc |
| остальные детали | Brass, NBR, stainless steel |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.
This single-acting diaphragm regulator can be installed in any pneumatic system. Since the pressure is preset in the factory and cannot be altered, the product is also tamper-proof. We recommend mounting the regulator directly on the tool to make sure the correct pressure is applied. In this case, the tool is never stressed by the higher pressure of the supply system and is protected against pressure fluctuations in hoses, pipes, etc. Energy efficiency and economic efficiency can be achieved by using an inline pressure regulator.
Pressure tolerance ± 0.3 bar at 10 l/min
* Несмотря на тщательную проверку мы не можем исключить наличие ошибок и не несем ответственность за содержащуюся в них информацию.
