K- 07 25 13 84
Service units, »ONE« Series, with pressure switch
Описание продукта

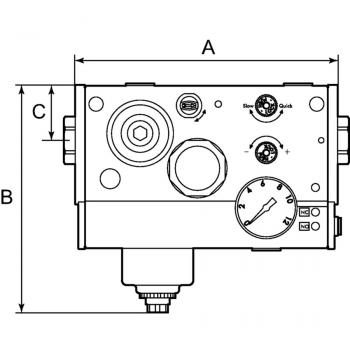

| C | 35 mm |
| B | 144,0 mm |
| A | 165.5 mm |
Свойства
| Рабочие среды | Сжатый воздух |
| Рабочее давление | 0.5 - 8 bar |
| Область температур | -10 °C to +50 °C |
| Измерение расхода воздуха | At 6,3 bar and ?p = 1 bar |
| Степень защиты | IP 65 |
| Входное давление | Max. 10 bar |
| Размер пор в фильтрующем элементе | 20 µm |
- Указания
- Описание
- Дополнительная информация
- Указание по заказу
Прочие данные только по запросу.

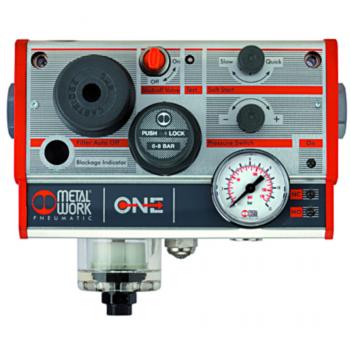

Multifunctional service unit with 6 or 7 functions in a single device: 3/2-way valve (manually operated), filter with automatic drain valve, air ports, pressure regulator, pressure gauge, soft start valve and optional: pressure switch. This combination of extremely good flow rates and a wide range of functions integrated in a single, compact unit saves valuable space and is unmatched by any similar product available in the market! Soft starting independently of the load and easy replacement of the filter cartridge under pressure are just two of the other outstanding features of this amazing device.
Pressure switches changeover contact
This unit can also be supplied with many other combinations of functions and port sizes. We will be pleased to make you an offer to match your individual specification on request!
