K-KOLST LOSE ZYL
Rodless cylinders
Рабочие среды:
Filtered (50 ?m), unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.
Рабочее давление:
1 to 8 bar
Область температур:
-15 °C to +80 °C
Уплотнение:
NBR for speeds up to 1 m/s
Свойства
| Рабочие среды | Filtered (50 ?m), unlubricated or lubricated compressed air. If lubrication is used, it must be continuous. |
| Рабочее давление | 1 to 8 bar |
| Область температур | -15 °C to +80 °C |
| Уплотнение | NBR for speeds up to 1 m/s |
| Корпус | Jacket made from anodised aluminium alloy |
| внутренняявнешняя лента | Stainless steel |
| Салазки направляющие поршня | Anodised aluminium alloy |
- Указания
- Описание
- Дополнительная информация
- Указание по заказу
Прочие данные только по запросу.

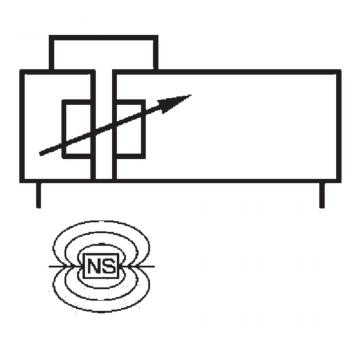

These double-acting cylinders can also be supplied with strokes greater than 5 m, providing the stroke length is approximately equal to the overall length. They are equipped with magnets as standard for indicating the position as well as pneumatic, adjustable end position cushioning. Limit switches and hydraulic shock absorbers can be mounted as add-on modules.
Important: The scope of supply does not include a connector. Please order separately.
All strokes can also be supplied in 1 mm steps on request. ? 16 to 5000 mm, ? 25, 32, 40 to 5700 mm and ? 63 to 5500 mm. Versions with an integrated linear guide can be supplied on request (up to 50 x lateral load).
Варианты изделия
