K- 07 45 01 19

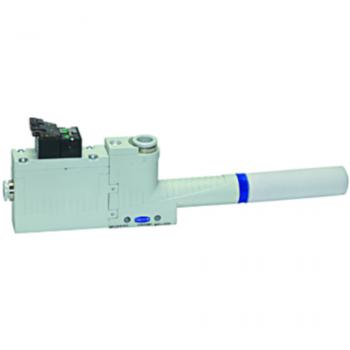

Basic ejectors »SBP-C« with blow-off valve, with integrated silencer
Описание продукта
| Размер | 142mm x 15mm x 50mm |
Свойства
| Применение | For universal use in handling systems with very high dynamic movements Handling all kinds of air-tight components For use in separation systems where space is restricted. Construction of ejector blocks for centralised or decentralised individual control of suction pads. |
| Свойства | Maximum suction capacity with minimum compressed air consumption Minimum size, low weight Vacuum generator with a single nozzle, available in six power ratings, with a high maximum vacuum value (85%) Connection of compressed air and vacuum with push-in coupling Basic housing with connection facility for a vacuum switch Various power ratings for optimised air consumption |
| Соединение | Push-in coupling |
| Система форсунок | Brass |
| Глушитель | Plastic |
| Основные части | Impact-resistant plastic |
- Указания
- Описание
Прочие данные только по запросу.

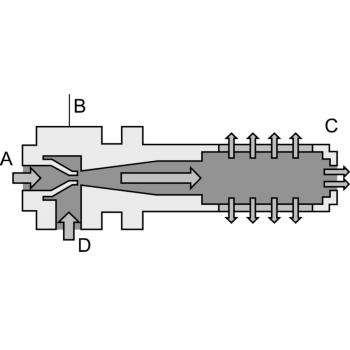

Purely pneumatic vacuum ejector that operates on the Venturi principle. Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
