K- 07 45 01 45

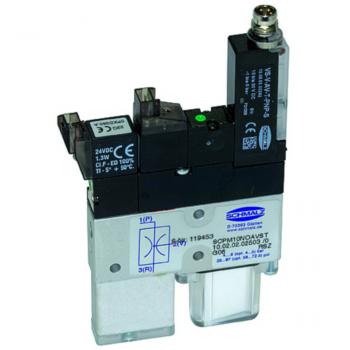

Mini-compact ejectors
Описание продукта
| Размер | 65mm x 10mm x 107mm |
| Рабочее давление | 4.5 bar |
Свойства
| Применение | Ideal where space is restricted and for highly dynamic movements, handling with industrial robots, linear axes pick-and-place systems |
| Свойства | Vacuum generator with integrated control valves and system monitoring functions Gripping and blowing off can be controlled without the need for external valves Optimised air consumption thanks to many models with differing suction capacities Minimum energy costs in continuous operation Easy adjustment with foil keypad and LED display of the settings Minimum size, low weight Optimum vacuum generation directly on the suction pad Complete solution for very simple installation Short learning curve thanks to "teach" function No need for additional sensors Easily visible status indication |
| Основные части | Anodised aluminium |
| Степень разрежения | 85 % |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.Mini-sensor with housing and connection cable, analogue or digital output signal. Minimum size and low weight combined with high measuring accuracy.
Purely pneumatic vacuum generator that operates on the Venturi principle. Compressed air enters the ejector at A and flows through the nozzle B. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet D. This air and the driving air leave the ejector via the silencer C.
Important: Order two connection plugs per ejector.NC blow-off valve, filter, silencer, non-return valve integrated.
