K- 07 45 01 29

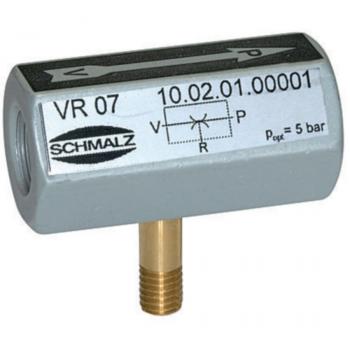

Inline ejectors »VR«, screw connection
Описание продукта
| Рабочее давление | 5 bar |
| Длина | 35 mm |
Свойства
| Применение | by screwing / plugging into the distribution beam direct attachment to the suction pad for handling various workpieces |
| Свойства | No moving parts, which means no wear and no maintenance Vacuum generator with high maximum vacuum level (85% vacuum) ultra small footprint, suitable for confined spaces minimal air consumption |
| Корпус | Aluminium eloxed (type VR) |
| Соединение | Вставное соединение |
| Система форсунок | Brass (type VR) |
- Указания
- Описание
Прочие данные только по запросу.

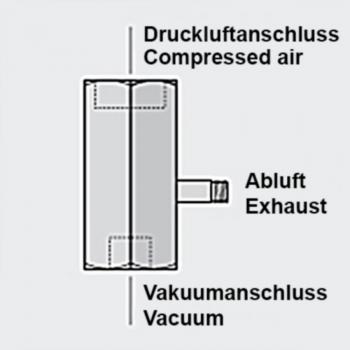

For vacuum generation directly at the point of use. For direct installation between the suction pad and the compressed air supply. Purely pneumatic vacuum generator that operates on the Venturi principle. Compressed air enters the ejector and flows through a nozzle. This results in a vacuum immediately behind the nozzle outlet, and air is drawn in through the vacuum inlet. This air and the driving air leave the ejector and enter the atmosphere via the exhaust air outlet.
