K- 07 15 05 89

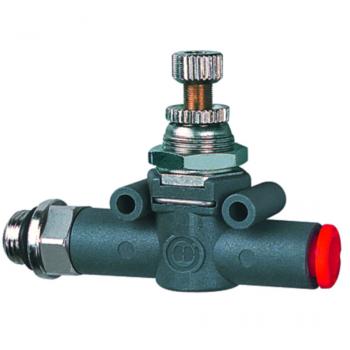

Flow regulators, flow at one end (cylinder assembly), thread - pipe
Описание продукта

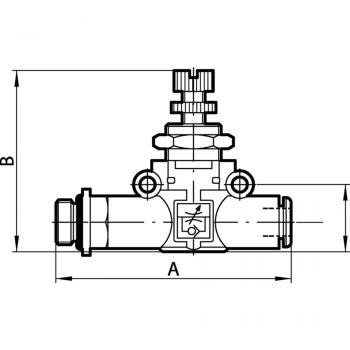

| B | 40 mm |
| A | 58.5 mm |
| I | 14.6 mm |
| Резьба | G 1/8 |
Свойства
| Рабочее давление | макс. 10 бар |
| Область температур | -20 °C to +60 °C |
| Уплотнение | Нитрильный каучук |
| Корпус | Technopolymer |
| Расход 63 бар | 155 l/min (? 4), 450 l/min (? 6), 850 l/min (? 8) |
| Расход Удаление воздуха 63 бар | 160 l/min (? 4), 550 l/min (? 6), 950 l/min (? 8) |
| Внутренние детали | nickel-plated brass, brass, technopolymer, stainless steel |
| Монтаж | Wall mounting (housing with drilled holes) Bracket mounting (mounting bracket available) Panel mounting (with bracket or lock nut) |
| Регулировка | Manual or screwdriver |
- Указания
- Описание
- Дополнительная информация
Прочие данные только по запросу.
A carefully selected assortment of products for installation in pneumatic circuits. These small, highly efficient components allow all pneumatic functions to be implemented anywhere in the circuit. The series has an ultramodular design.
All components can be installed In parallel, In series, In a mixed parallel / serial configuration. Available as Pipe / pipe connection with two plug connectors Thread / pipe connection, with one plug connector and one nickel-plated brass thread.
All components can be installed In parallel, In series, In a mixed parallel / serial configuration. Available as Pipe / pipe connection with two plug connectors Thread / pipe connection, with one plug connector and one nickel-plated brass thread.
Symbol on the housing
