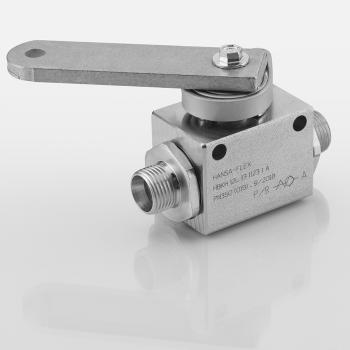

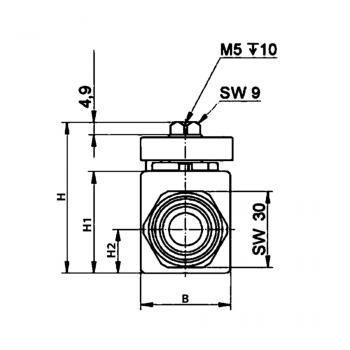

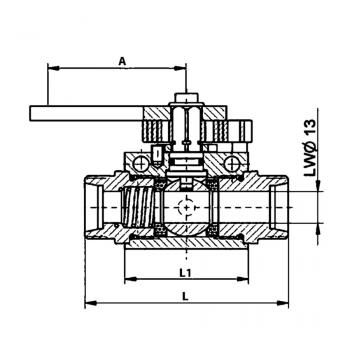

HBKHL VZ

Please refer to the operating instructions for ball valves.Note the permissible pressure limits for the connecting elements.Different temperature options on request.Version "A" spring adapter at pin.Version "B" spring adapter opposite the pin.

The working stroke of a hydraulic cylinder can be determined by mounting a stroke limiter in the system. In the starting position, the HBKH is open. The cable attached to the cylinder rod and to the valve handle operates the handle when stretched. The resulting movement turns the T-ball with the stem into the closed position, thus interrupting the flow. The cylinder rod stays in the original position. After closing the idle running at the separate control valve, the upstream side of the HBKH is depressurised. The pressure is transferred downstream operating the free moving ball, and pass through its T-port design. The cylinder then retracts and the spiral spring relaxes, returning the ball and stem to the original position.

DN = номинальный диаметр, номинальный внутренний диаметр Серия: LL = очень легкая L = легкая S = тяжелая LW = условный проход SW = размер под ключ SF = коэффициент безопасности
